Shank Type Worm Wheel Hob with Module m4.5
2022-06-07 11:48:31
jiangxingTools
2643
Shank Type Worm Wheel Hob with Module m4.5
Material: Powder Metal Steels (PM) and High-Speed-Steels (HSS)
Pitch circle dia. 49.5mm
Working length 85mm
Overall length 390mm
More taper: morse no. 4
quality: class A to DIN3968
Module m4.5, with pressre angle: PA20°
相關(guān)文章
-
Technical Information for Hobs

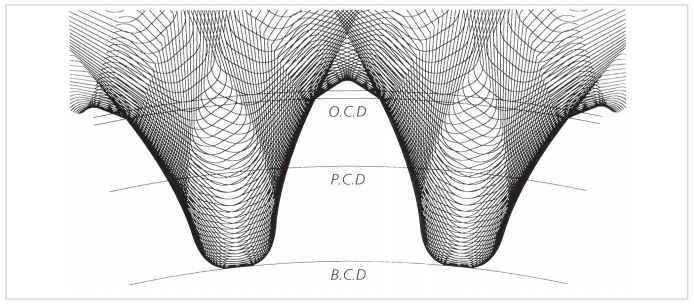

Technical Information for Hobs1,Simulation of Tooth Profile2,Certificate of Hob QualityJiangxing Too... - Spray Forming Material HSF825K, HSF835
