PA20° HSS M2, M35 Gear Cutting Hobs with Semi-Topping Tooth Profile
2022-08-22 13:58:41
jiangxingTools
3422
PA20° HSS M2, M35 Gear Cutting hobs with Semi-Topping Tooth Profile
Semi-topping tooth profile is for reducing a noise with chamfer on out-diameter of a gear.
symbol is S-TOP, semi-topping gear hobs
Moddule, PA20° or PA14.5°，hao=1.25m, ho=D+F=2.25m, r=0.2m-0.39m
相關文章
-

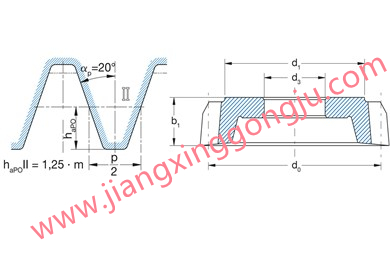

Finishing disc-type shaper cutter with DIN 3972/II
