GB STD Bowl Shape Straight Tooth Gear Shaper Cutter
2021-10-16 09:18:54
jiangxingTools
2849

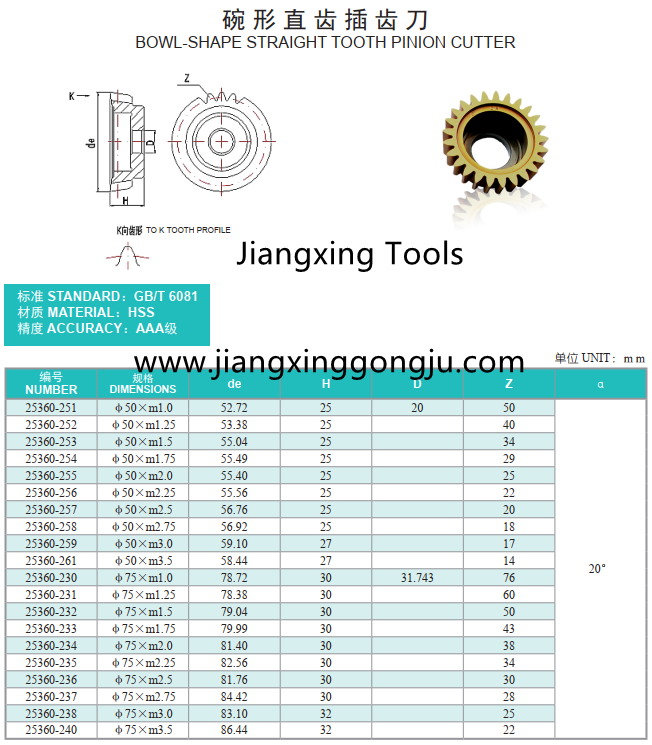

GB STD Bowl Shape Straight Tooth Gear Shaper Cutter
tooth profile: GB standard
Material: HSS M2, M35+TiN, AP coating
Accuracy: Class A, AA
Also more module and DP gear shaper cutters can be ordered according to your requirements.
