Gear hobs for synchroflex timing belt pulleys
2021-11-10 08:42:32
jiangxingTools
3657
Gear hobs for synchroflex timing belt pulleys
topping cutter
quality grade A to DIN3968
single start, right-handed
with keyway
The "se" tooth gap from is applied up to 20 teeth incl. over 20 teeth=normal profile
相關文章
-

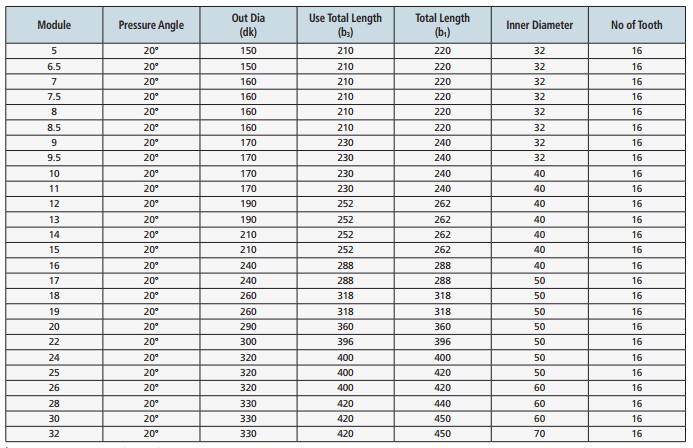

Heavy Cutting Gear Hob
